Backplanes and Mounting Hardware

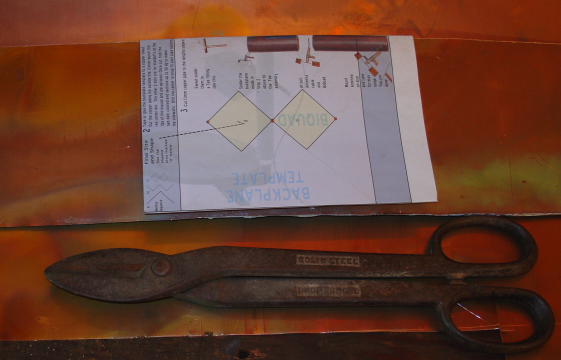

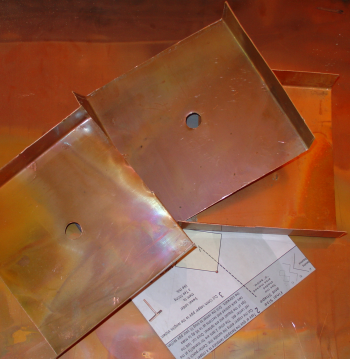

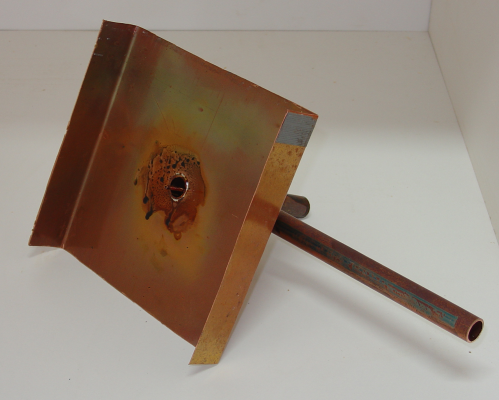

The backplane is a metal sheet that lies behind the BiQuad and controls the shape of the antenna emissions.  It is important to size the backplane accurately, that it be flat and the side walls have tight 90 dg bends.  The BiQuad itself should lie about 15 mm above the backplane.


a


a      a

I'll describe a couple of methods I've used to hang the BiQuad itself 15mm in front of the backplane.  Depending on your choice of cable (thick LMR400 vs thin LMR195) and your personal preferences, you may like one more than the other.  The details about cable choice and mounting the BiQuad follow.

a

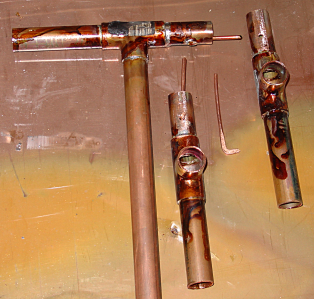

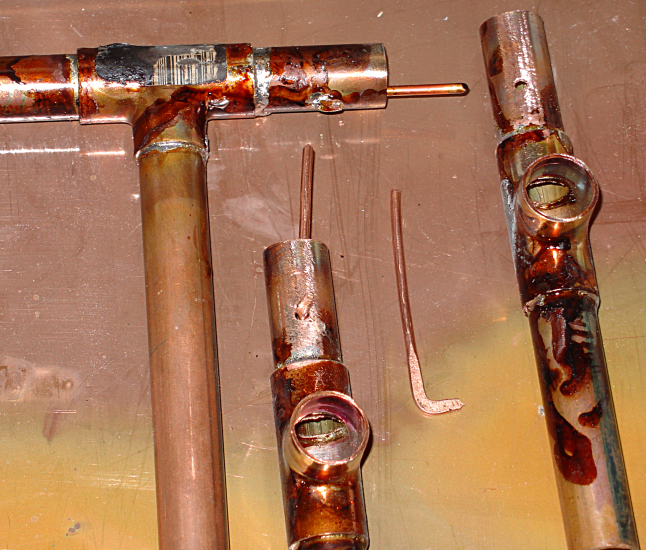

Note the small hole drilled in the upper rightmost pipe below.  See how ground wire is fit and soldered into the same hole in the upper left piece, below.  This makes a really good mount.  Solder the wire to the pipe, then add the backplane.  Once that is done, the antenna soldering isn't likely to melt the ground wire free from the pipe and backplane.
a


 The thick LMR400 cable will make a press fit in the pipe I use with the copper tube.  The slimmer LMR195 won't and may need some caulk or crimps in the pipe to stabilize the wire in the mount.   If you want to use a heavy copper wire as an antenna mount, drill a small hole in the copper pipe the size of your support wire.  Drill it just behind the backplane between the backplane and the Tee, as shown above.  Bend your support wire to an "L" shape, stuff the short leg of the wire thru the drilled hole and solder it to the mount pipe.  You can bend/solder/re-solder the support and BiQuad to adjust the SWR.  It's easier to solder to than the slim copper tube.  You can improvise any support as long as you get a good ground and a stable position for the BiQuad.

a      a

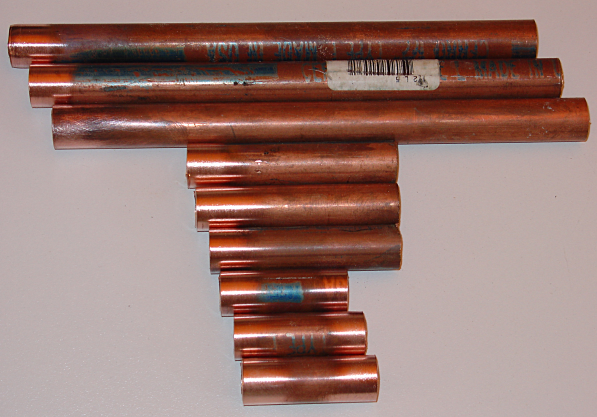

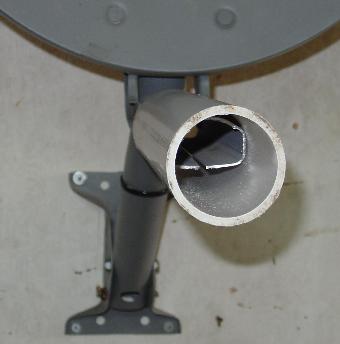

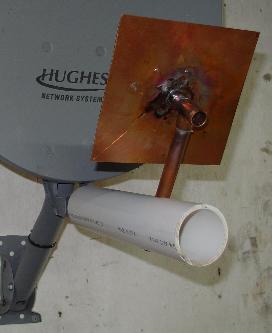

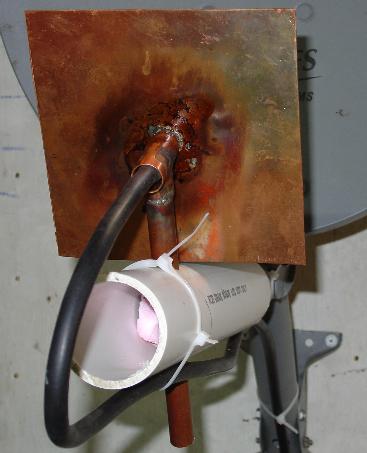

Most  situations need a Tee and post (above right).  To mount the copper pipe to the dish, use a piece of PVC pipe.  Find some PVC pipe that just fits over the feed arm of the dish, as shown below.  In the US, a 2" heavy wall PVC has worked well for me. The length of the pipe depends on the make of the dish, but typically they are about 0.3 m long-this is the length of the long side of the Construction Template.

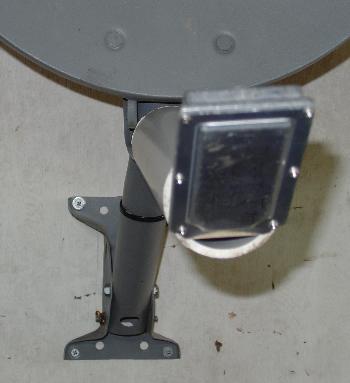

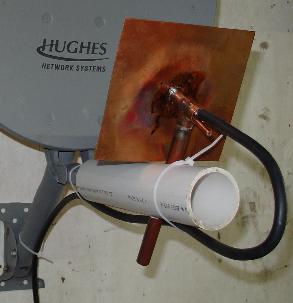

In the photo below, I cut off the last 10-20 cm of the feed arm to make up for the antenna and backplane being too far from the dish.  That allows me more range to tune the BiQuad to the parabolic dish focus point. It's important to get the antenna at the right height, distance and angle to the dish.

a  a

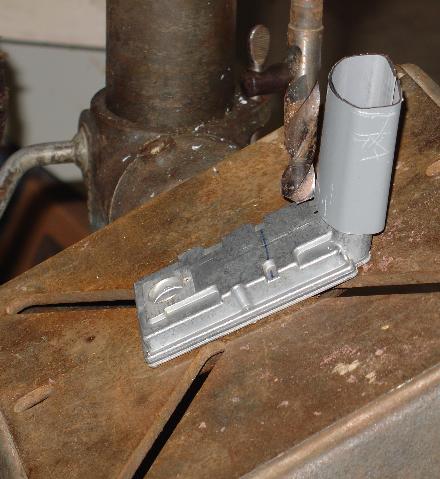

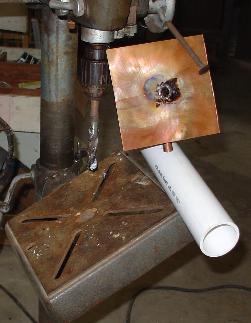

It's easy to set a drill press to the right angle if you have a reference.
a

a   a

a  a

a
